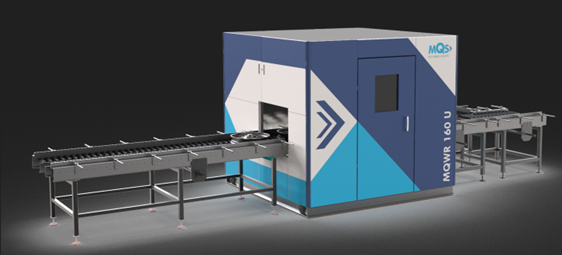

MQWR 160U is India’s first indigenously developed inline X-ray inspection system designed specifically for 2-wheeler and 4-wheeler alloy wheels. Built for high-volume production environments, it inspects wheels from 10” to 26” using a fully automated workflow, a customized wheel-holding + alignment mechanism, and integrated ADR (Automatic Defect Recognition) software compliant with ASTM E2422-22. The system is AERB Type Approved, enabling fast, safe, and consistent quality control directly on the manufacturing line.
Continuous & high-throughput production QC
Consistent scan accuracy across wheel sizes

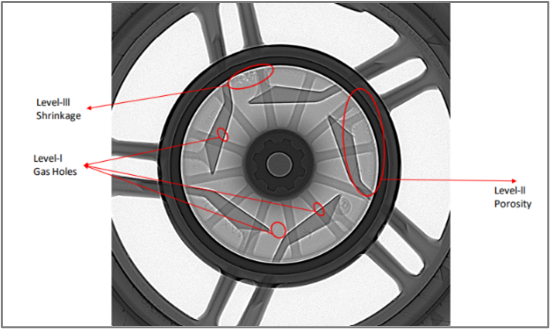

Real-time detection of cracks, porosity, shrinkage and casting defects
Minimal changeover and flexible holding mechanism
Batch/random wheel identification and program recall
ASTM E2422-22 defect categorization

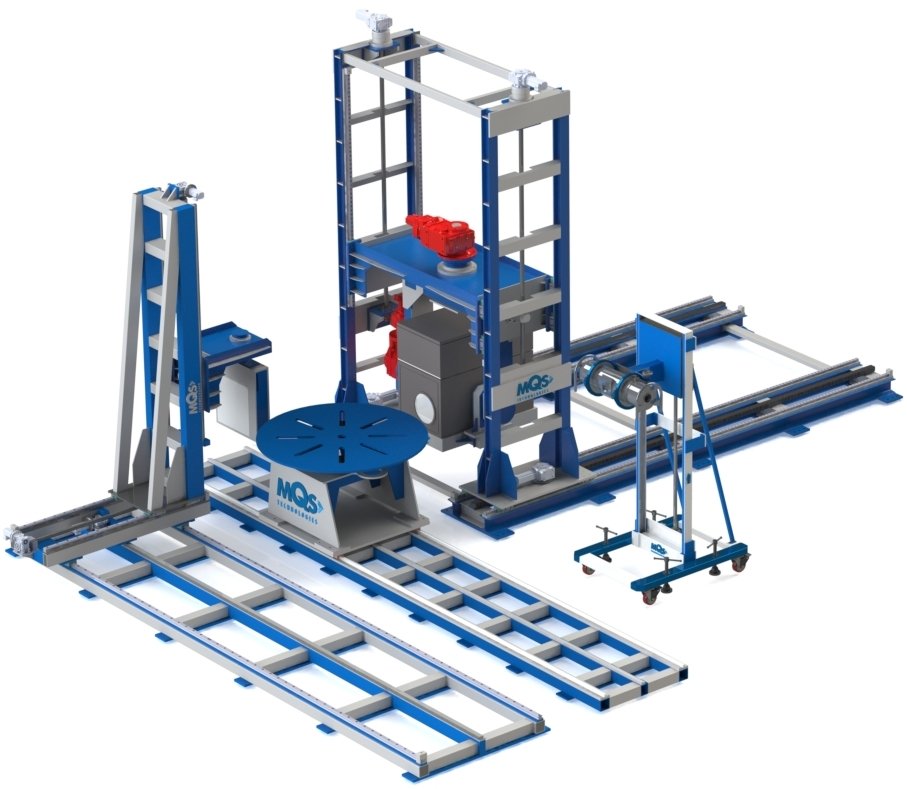

Performed using a stand-alone C-arm manipulator
Contains macros, image quality indicators, and auto-calibration
Stable source-detector motion control to achieve consistent radiographic results across wheel geometries.
Conveyor-integrated workflow designed for continuous movement, minimal manual handling, and consistent output.
Adapts to multiple wheel sizes and ensures optimum positioning to improve scan repeatability and reduce rejects/re-scans.
Real-time defect detection and classification to reduce human subjectivity and support audit-ready reporting.
Macro-based inspection routines, IQI support, periodic calibration, and digital record-keeping for high-confidence QC.
Industries:
Applications:
| Feature | 160 kV | 225 kV |
|---|---|---|
| Focal Spot | 0.4 – 1.0 mm | 0.4 – 1.0 mm |
| Analysis Mode | 2D | 2D |
| Duty Cycle | 100% | 100% |
| Feature | XRD 0822 | XRD 3131N |
|---|---|---|
| Pixel Pitch | 200 µm | 100 µm |
| Active Area | 205 × 205 mm | 307 × 307 mm |
| Pixel Matrix | 1024 × 1024 | 3072 × 3072 |
| Frame Rate | 25 fps | 25 fps |
| ADC | 16-bit | 16-bit |
