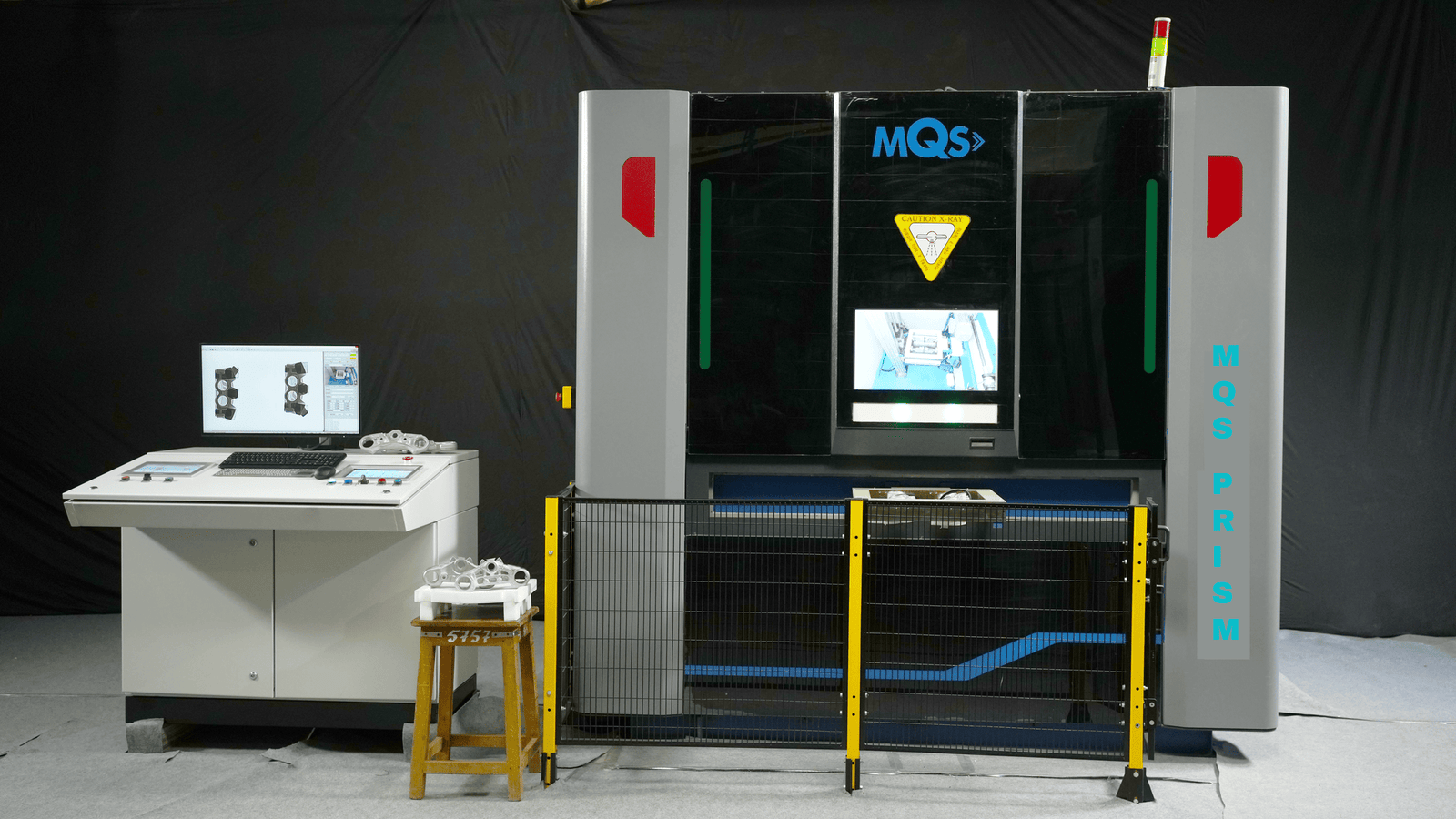

MQS-PRISM is a fully automated, high-throughput 2D digital X-ray inspection system designed for continuous industrial use. Engineered for 24/7 production environments, PRISM can inspect over 1 million parts per year with high repeatability. Its swivel-based motion control, AI-enabled Automated Defect Recognition (ADR), and high-resolution imaging software deliver consistent, traceable, operator-independent inspections, compliant with ASTM E2422 standards.
Whether you’re inspecting automotive castings or precision assemblies, PRISM delivers quality without compromise — backed by MQS’s complete support ecosystem.
Built for continuous 24/7 operation without slowing the production line
100% inspection with reduced subjectivity and minimal false negatives
Lower cost of quality and reduced inspection cycle time
Minimal hardware change to handle multiple component types
Barcode + cloud-ready reporting for batch traceability and compliance
Parallel scanning + loading reduces cycle time and increases throughput.
Better defect coverage for complex castings and assemblies.
Consistent, objective defect recognition—reduces operator dependency.
Repeatable scan patterns and stable inspection quality across batches.
Smart factory readiness with traceable inspection history and reports.
Fully shielded, factory-safe operation for production environments.
| X-Ray Source | 160 kV / 225 kV |
| Focal Spot | 0.4 / 1.0 mm |
| Detector | Flat Panel DFPD |
| Pixel Pitch | 200 µm |
| Active Area | Up to 307 × 307 mm |
| Frame Rate | 25 fps |
| Motion System | CNC with ±1 mm / ±1° accuracy |
| Safety | AERB-compliant full shielding |
| Software | MQS ADR + Image Processing + Batch Reporting |
