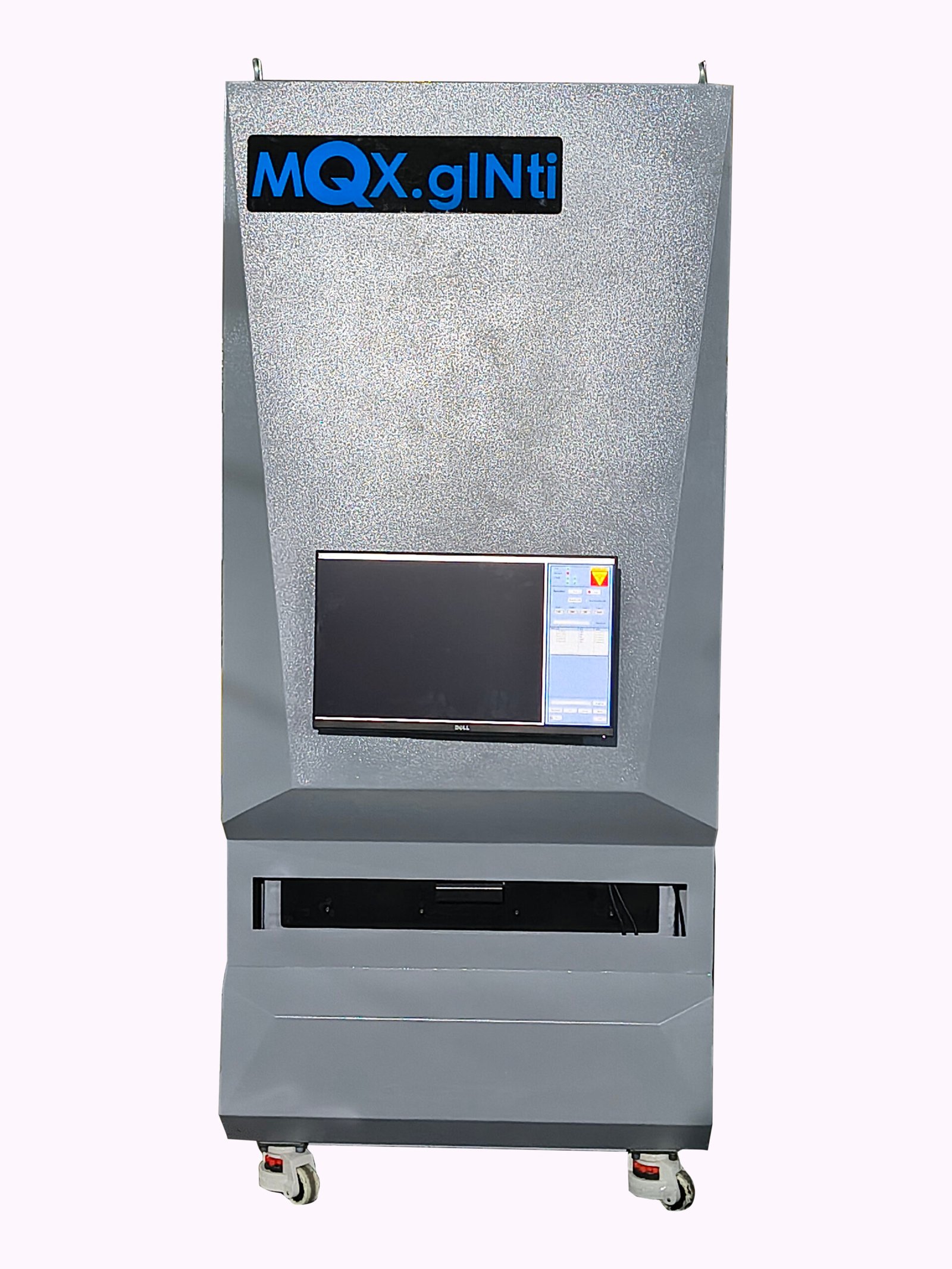

Home / MQX.gINti
MQX.gINti is an AI-powered X-ray component counter built to deliver ultra-fast, accurate reel counting for SMT lines and stores. It counts reels in < 7 seconds with > 99% accuracy—even for 01005 components—helping reduce manual errors and improve inventory control.
Counts reels in < 7 seconds, improving operator throughput.
Delivers > 99% accuracy even for ultra-small components.
Supports ERP/MES connectivity, barcode scanning, label printing, and API-based automation.
Intuitive UI & minimal training enabling users to get started quickly.
AERB type-approved with safety interlocks and emergency stop; sealed X-ray source for long service life.
Smart counting interface & quick operation
Ensures simultaneous reel counting
Barcode integration
AERB safety & interlocks
Easy handling on shop floor
| Parameter | Specification |
|---|---|
| Cycle Time / Accuracy | < 7 seconds / > 99% (including 01005) |
| Max Reel Diameter | 400 mm |
| Max Reels per Cycle | 4 reels (178 mm each) |
| Dimensions (W×D×H) | 950 × 1000 × 2100 mm |
| System Weight | ~800 kg |
| Compliance / Safety | AERB type-approved + safety interlocks, emergency stop |
