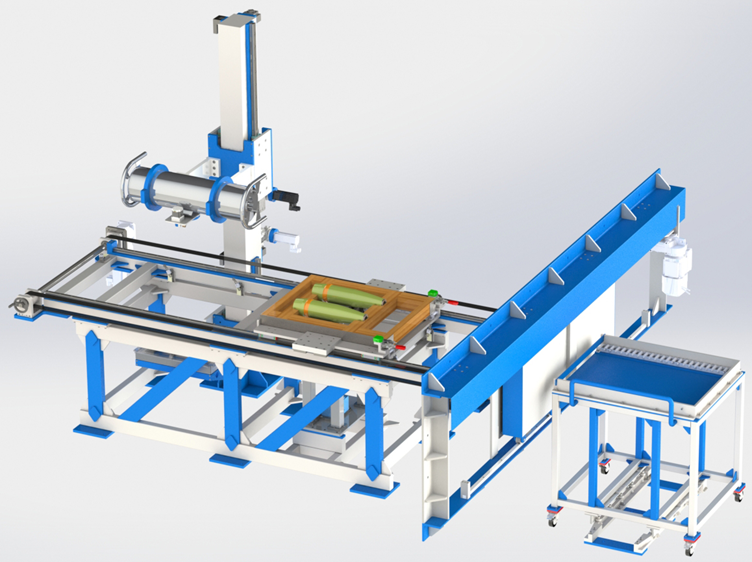

MQS Technologies offers a wide range of digital X-ray inspection solutions for ammunition of different calibres. Our shell inspection systems are designed with a dual-station workflow—Station 1 for X-raying and Station 2 for shell rotation and indexing—to support consistent, repeatable inspection. The system is supplied with pre-set inspection programs that automatically run the complete X-ray inspection cycle for shells of different diameters, helping users improve throughput while reducing manual dependency.
X-ray + rotation/indexing stations enable smoother inspection flow.
Configured presets automate inspection across different shell diameters.
Supports multiple MQXR series sources and high-energy options depending on penetration needs.
Multiple detector sizes/pixel pitches enable clear imaging and documentation.
Developed with MQS’s in-house design capability and strong PSU partnership track record.
Automated radiographic inspection for internal defects and quality verification.
Controlled rotation improves inspection coverage and repeatability.
Quick changeover—automatic inspection cycles for different shell diameters.
Configurable mechanical design for calibre size, handling needs, and layout.
Flexible source + detector pairing for optimal penetration, clarity, and throughput.
| Detector | X-ray Range | Pixel Size | Active Area |
|---|---|---|---|
| MQXRD 0822 XX | 0–16 MeV | 200 µm | 200 × 200 mm |
| MQXRD 3025 XX | 0–450 kV | 139 µm | 250 × 300 mm |
| MQXRD 1621 XX | 0–16 MeV | 200 µm | 400 × 400 mm |
| MQXRD 4343 HE XX | 20–16 MeV | 139 µm | 427 × 427 mm |
