Home / MQXC Series – Cabinet-Based Digital Radiography Systems

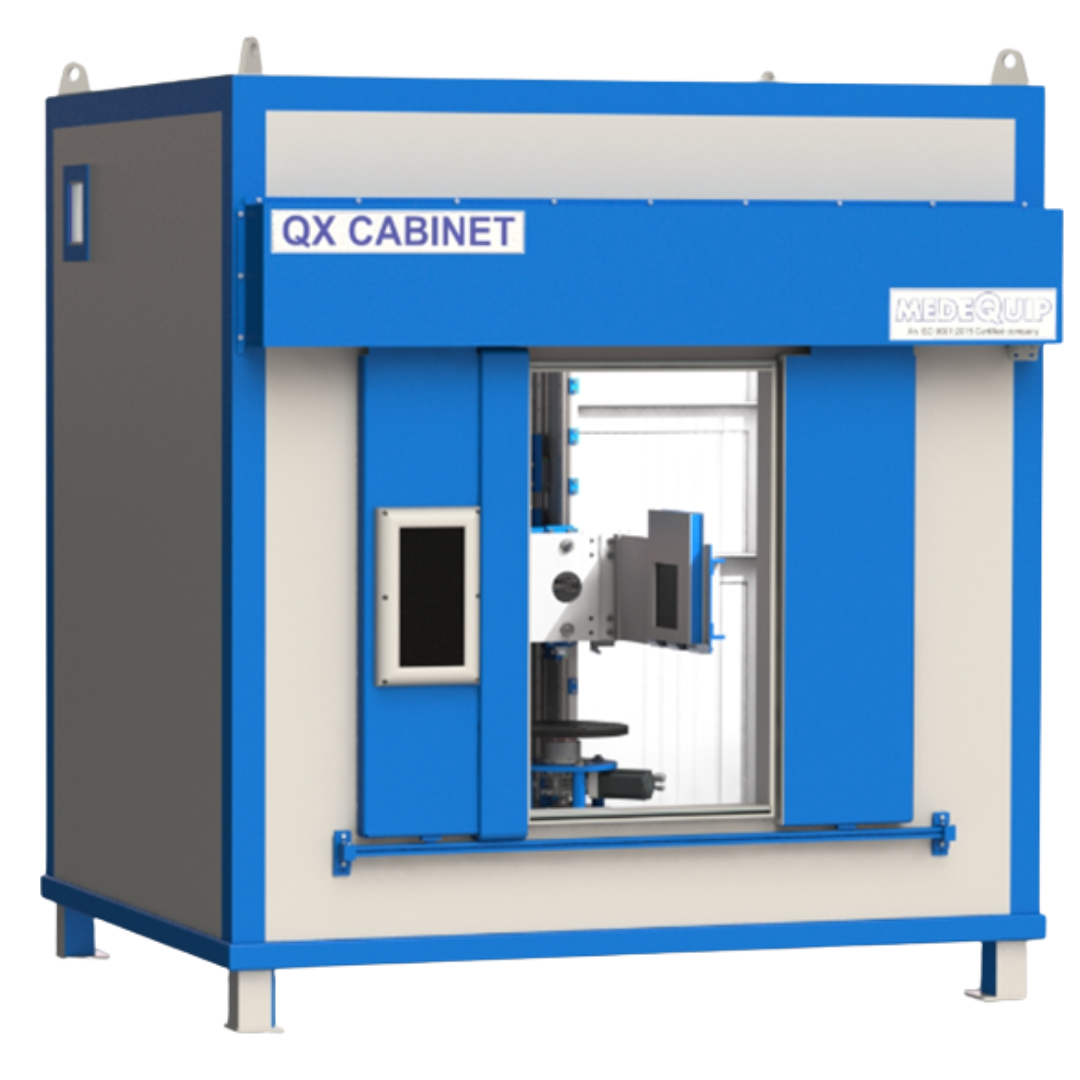

When you need reliable 2D X-ray inspection inside a safe, compact footprint — MQXC series is built to deliver. MQXC cabinet systems are self-contained digital radiography (DR) and CT-ready inspection platforms designed for small to mid-sized components, offering high-resolution imaging, modular manipulators, and AERB-compliant safety architecture. Whether you’re inspecting electronics assemblies, aerospace parts, or additive-manufactured components, MQXC helps you detect defects faster, repeatably, and with complete operator protection.
AERB-guideline cabinet design with shielding, interlocks, and safety systems; built for compliance and faster approvals.
Cabinet and part envelope can be customized; so the system matches your workflow, not the reverse.
High-resolution detectors (up to 75 μm) and large active areas help you see cracks, voids, and misalignments clearly.
Multi-axis manipulation enables tilt/rotation for complex parts, reducing re-positioning time and blind spots.
From PCBs to welds to composites; MQXC serves varied inspection needs and remains a long-term asset across teams.
Safer operation with controlled leakage; built for compliance-focused environments.
Fast loading/unloading with fool-proof safety—minimizes operator risk.
Clear images with large coverage area—supports fast and accurate decision-making.
Better inspection coverage for complex geometries; supports CT-style workflows.
Standardized scans via macros and repeatable programs—higher throughput with fewer errors.

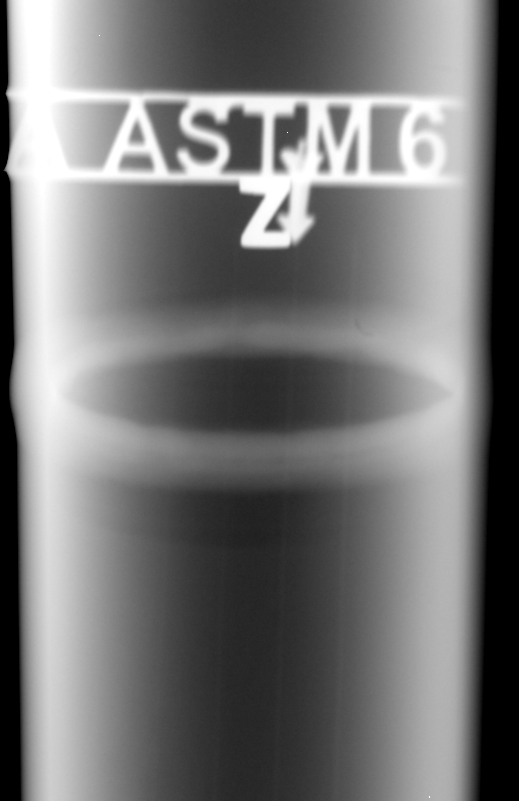

MQXC 160 is ideal for high-speed inspection of aluminium components, light alloy castings, plastics, and small assemblies. It delivers clean 2D radiographs with compact setup and flexible cabinet configurations—perfect for day-to-day QC where throughput and ease-of-use matter.
Key technologies: Mini/microfocus source options, high-speed DFPD imaging, recipe-based scans, safety interlocks and AERB-ready cabinet architecture.
Best for: Aluminium castings, electronics housings, small automotive parts
MQXC 225 is a balanced platform designed for medium-density components and varied parts. It’s widely used when manufacturers need one cabinet system that can cover multiple SKUs and inspection tasks—without compromising imaging clarity.
Key technologies: High-resolution DFPD options, multi-axis manipulator support, macro/CNC workflows, and repeatable inspection programs.
Best for: Medium castings, weld checks on moderate thickness, multi-part QC lines.

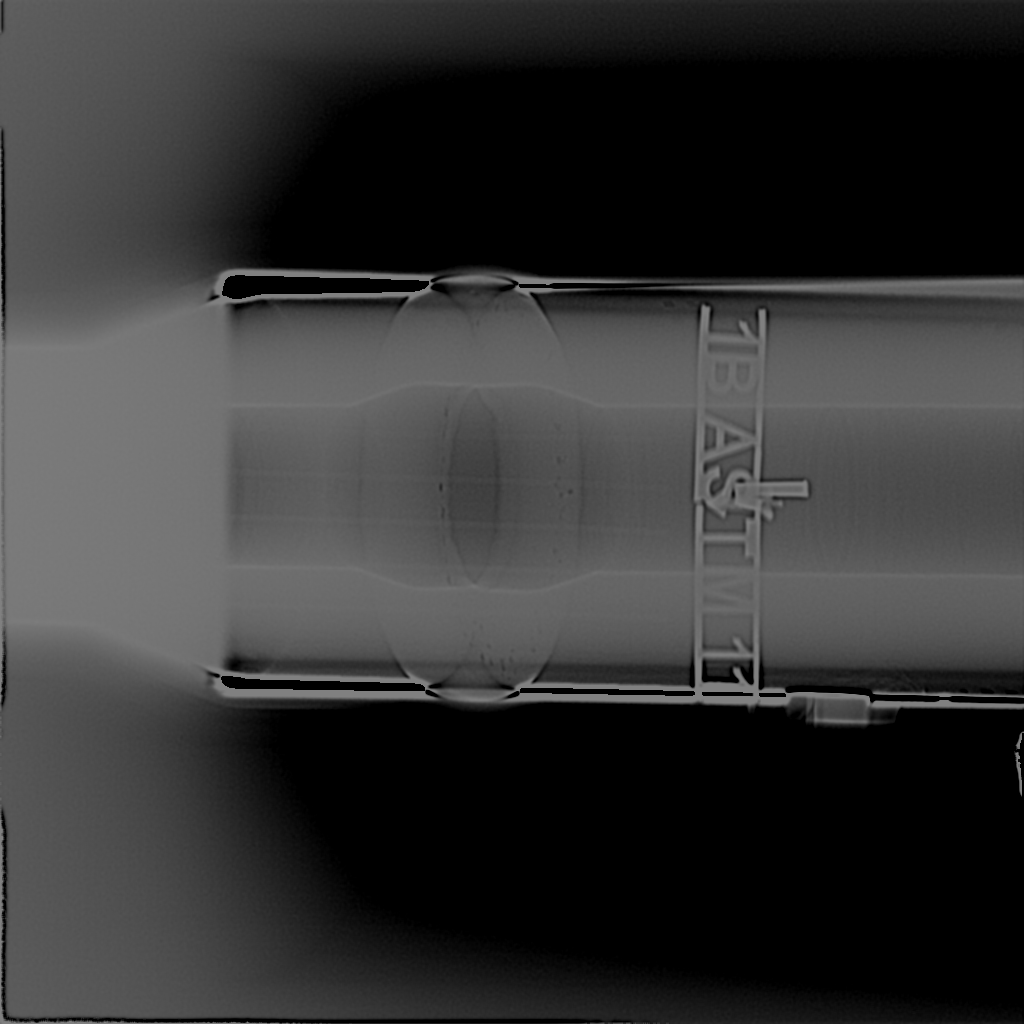

MQXC 320 is built for inspecting thicker components, steel parts, weld joints, and denser assemblies where higher energy is required for reliable defect visibility.
Key technologies: Higher kV inspection capability, larger detector options, multi-axis positioning for complex parts, CT-ready workflows.
Best for: Weld joints, thick castings, dense assemblies, aerospace/defence components (small to mid size).

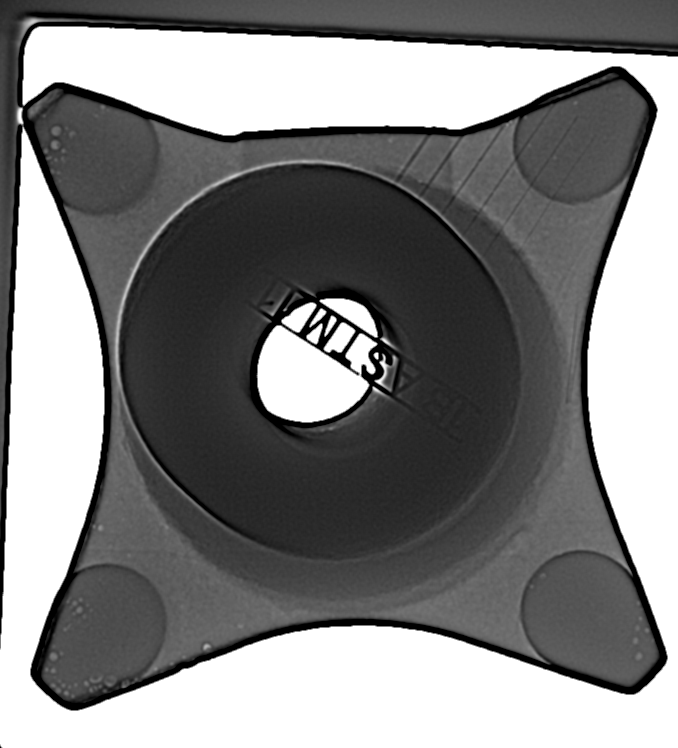

MQXC 450 is the high-end cabinet DR platform for high-density components requiring maximum penetration within a controlled cabinet system.
Key technologies: High-energy tube support, high-power imaging chain, large-area detectors, CNC programs, compliance-oriented safety architecture.
Best for: High-density castings, thick steel parts, critical inspection where penetration is the priority.
| Parameter | Value |
|---|---|
| Y-Axis Travel | ~1100 mm |
| Z-Axis Travel | ~1500 mm |
| X-Axis | Linear + Tilt (±45°) |
| Object Rotation | 360° continuous |
| Load Capacity | Up to 100 kg |
| Model | Pixel Pitch | Active Area | Frame Rate | Scintillator |
|---|---|---|---|---|
| MQXRD 0822 XX | 200 μm | 200×200 mm | 25–50 fps | CsI / DRZ+ |
| MQXRD 3025 XX | 200 μm | 250×300 mm | 15–30 fps | CsI / DRZ+ |
| MQXRD 1621 XX | 200 μm | 400×400 mm | 15–30 fps | CsI / DRZ+ |
| MQXRD 4343N XX | 150 μm | 430×430 mm | 15–30 fps | CsI / DRZ+ |
| Voltage Options | Power Output | Tube Type | Analysis Modes | Focal Spot Size |
|---|---|---|---|---|
| 160 – 450 kV | 640W – 4500W | Mini / Microfocus | 2D, CT | 0.4 mm – 5.5 mm |
